WebSocket服务器更多...

#include <ws_websocket.hpp>

类 ws::WsHttpServer 继承关系图:

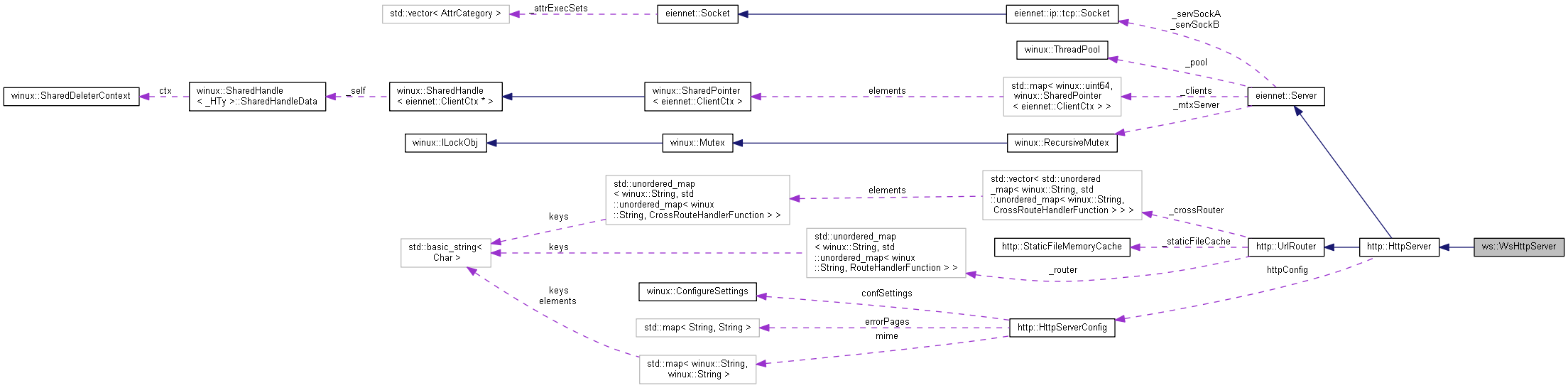

ws::WsHttpServer 的协作图:

[图例]

Public 类型
using	OpenHandlerFunction = std::function< void(winux::SharedPointer< WsHttpRequestCtx > requestCtxPtr) >

using	MessageHandlerFunction = std::function< void(winux::SharedPointer< WsHttpRequestCtx > requestCtxPtr, winux::AnsiString const &data, int messageType) >

using	CloseHandlerFunction = std::function< void(winux::SharedPointer< WsHttpRequestCtx > requestCtxPtr, winux::uint16 errCode, winux::AnsiString const &errStr) >

using	ErrorHandlerFunction = std::function< void(winux::SharedPointer< WsHttpRequestCtx > requestCtxPtr, WebSocketErrorCode ec) >

Public 类型继承自 http::HttpServer
using	CrossRouteHandlerFunction = CrossRouteHandlerFunctionT< HttpRequestCtx, Response >
	过径路由处理函数类型更多...

using	RouteHandlerFunction = RouteHandlerFunctionT< HttpRequestCtx, Response >
	普通路由处理函数类型更多...

using	CreateResponseHandlerFunction = std::function< Response *(Request &req, winux::SimplePointer< RspOutputMgr > outputMgr) >
	创建响应处理函数类型更多...

Public 类型继承自 eiennet::Server
using	ClientDataNotifyHandlerFunction = std::function< void(winux::SharedPointer< ClientCtx > clientCtxPtr, size_t readableSize) >
	客户数据通知，当`Server::_isAutoReadData`为false时有效更多...

using	ClientDataArrivedHandlerFunction = std::function< void(winux::SharedPointer< ClientCtx > clientCtxPtr, winux::Buffer &data) >
	客户数据到达，当`Server::_isAutoReadData`为true时有效更多...

using	CreateClientHandlerFunction = std::function< ClientCtx *(winux::uint64 clientId, winux::String const &clientEpStr, winux::SharedPointer< ip::tcp::Socket > clientSockPtr) >
	创建客户连接对象更多...

Public 类型继承自 http::UrlRouter
using	CrossRouteHandlerFunction = CrossRouteHandlerFunctionT< http::Request, http::Response >

using	RouteHandlerFunction = RouteHandlerFunctionT< http::Request, http::Response >

using	WebMainHandlerFunction = std::function< void(winux::SharedPointer< http::Request > requestPtr, http::Response &rsp) >
	WebMain逻辑处理函数类型更多...

using	ExtensionHandlingHandlerFunction = std::function< bool(winux::String const &extName, winux::String const &fullPath, winux::SharedPointer< http::Request > requestPtr, http::Response &rsp) >
	特别扩展名处理函数类型更多...

Public 成员函数
void	onOpenHandler (OpenHandlerFunction handler)

void	onMessageHandler (MessageHandlerFunction handler)

void	onCloseHandler (CloseHandlerFunction handler)

void	onErrorHandler (ErrorHandlerFunction handler)

Public 成员函数继承自 http::HttpServer
	HttpServer ()
	构造函数0 更多...

	HttpServer (winux::ConfigureSettings const &settings)
	构造函数1 更多...

	HttpServer (winux::ConfigureSettings const &settings, eiennet::ip::EndPoint const &ep, int threadCount=4, int backlog=0, double serverWait=0.002, double verboseInterval=0.01, eiennet::VerboseOutputType verbose=eiennet::votConsole, int cacheLifeTime=86400)
	构造函数2 更多...

bool	init (winux::ConfigureSettings const &settings)
	初始化1 更多...

bool	init (winux::ConfigureSettings const &settings, eiennet::ip::EndPoint const &ep, int threadCount=4, int backlog=0, double serverWait=0.002, double verboseInterval=0.01, eiennet::VerboseOutputType verbose=eiennet::votConsole, int cacheLifeTime=86400)
	初始化2 更多...

void	crossRoute (winux::String const &method, winux::String const &path, CrossRouteHandlerFunction handler)
	注册过径路由处理器更多...

void	route (winux::String const &method, winux::String const &path, RouteHandlerFunction handler)
	注册普通路由处理器更多...

virtual int	run (void *runParam) override
	运行更多...

void	onCreateResponseHandler (CreateResponseHandlerFunction handler)

Public 成员函数继承自 eiennet::Server
	Server ()
	构造函数0，不会启动服务，必须手动调用`startup()` 更多...

	Server (bool autoReadData, ip::EndPoint const &ep, int threadCount=4, int backlog=0, double serverWait=0.002, double verboseInterval=0.01, VerboseOutputType verbose=votConsole)
	构造函数1，会启动服务更多...

virtual	~Server ()

bool	startup (bool autoReadData, ip::EndPoint const &ep, int threadCount=4, int backlog=0, double serverWait=0.002, double verboseInterval=0.01, VerboseOutputType verbose=votConsole)
	启动服务器更多...

void	stop (bool b=true)
	是否停止服务运行更多...

size_t	getClientsCount () const
	获取客户连接数更多...

void	removeClient (winux::uint64 clientId)
	移除客户连接更多...

void	onClientDataNotifyHandler (ClientDataNotifyHandlerFunction handler)

void	onClientDataArrivedHandler (ClientDataArrivedHandlerFunction handler)

void	onCreateClientHandler (CreateClientHandlerFunction handler)

Public 成员函数继承自 http::UrlRouter
	UrlRouter (http::HttpServerConfig *httpConfig=nullptr)
	构造函数更多...

virtual	~UrlRouter ()
	析构函数更多...

bool	init (http::HttpServerConfig *httpConfig)
	初始化更多...

void	crossRoute (winux::String const &method, winux::String const &path, CrossRouteHandlerFunction handler)
	注册过径路由处理器更多...

void	route (winux::String const &method, winux::String const &path, RouteHandlerFunction handler)
	注册普通路由处理器更多...

void	onWebMainHandler (WebMainHandlerFunction handler)

void	onExtensionHandlingHandler (ExtensionHandlingHandlerFunction handler)

Protected 成员函数
virtual bool	_beginRouting (winux::SharedPointer< http::HttpRequestCtx > requestCtxPtr, http::UrlPathPartData const &urlData, http::Response &rsp) override
	开始路由。返回false表示不路由（在此判断是否升级为WebSocket）更多...

virtual void	onOpen (winux::SharedPointer< WsHttpRequestCtx > requestCtxPtr)

virtual void	onMessage (winux::SharedPointer< WsHttpRequestCtx > requestCtxPtr, winux::AnsiString const &data, int messageType)

virtual void	onClose (winux::SharedPointer< WsHttpRequestCtx > requestCtxPtr, winux::uint16 errCode, winux::AnsiString const &errStr)

virtual void	onError (winux::SharedPointer< WsHttpRequestCtx > requestCtxPtr, WebSocketErrorCode ec)

Protected 成员函数继承自 http::HttpServer
virtual eiennet::ClientCtx *	onCreateClient (winux::uint64 clientId, winux::String const &clientEpStr, winux::SharedPointer< eiennet::ip::tcp::Socket > clientSockPtr) override

virtual void	onClientDataArrived (winux::SharedPointer< eiennet::ClientCtx > clientCtxPtr, winux::Buffer &data) override

void	_onHttpRequestInternal (winux::SharedPointer< HttpRequestCtx > requestCtxPtr)
	处理一次HTTP请求更多...

virtual bool	_beginHttpRequest (winux::SharedPointer< http::HttpRequestCtx > requestCtxPtr, http::UrlPathPartData *urlData)
	开始HTTP请求处理，初始化一些数据更多...

virtual void	_endHttpRequest (winux::SharedPointer< http::HttpRequestCtx > requestCtxPtr)
	HTTP请求处理完，进行一些收尾更多...

virtual void	_endRouting (winux::SharedPointer< http::HttpRequestCtx > requestCtxPtr, http::UrlPathPartData const &urlData, http::Response &rsp)
	结束路由更多...

virtual void	_whatNextTask (winux::SharedPointer< HttpRequestCtx > requestCtxPtr)
	下一次要做的任务更多...

virtual void	_doTask (winux::SharedPointer< http::HttpRequestCtx > requestCtxPtr)
	执行客户任务更多...

void	_doRecvRequestHeaderTask (winux::SharedPointer< HttpRequestCtx > requestCtxPtr)
	接收请求头任务更多...

void	_doRecvRequestBodyTask (winux::SharedPointer< HttpRequestCtx > requestCtxPtr)
	接收请求体任务更多...

virtual Response *	onCreateResponse (Request &req, winux::SimplePointer< RspOutputMgr > outputMgr)

Protected 成员函数继承自 eiennet::Server
virtual bool	_canAddClient (ClientCtx *clientCtx)
	是否添加一个客户连接。返回true添加，返回false不添加更多...

bool	_addClient (ip::EndPoint const &clientEp, winux::SharedPointer< ip::tcp::Socket > clientSockPtr, winux::SharedPointer< ClientCtx > **ppClientCtxPtr)
	添加一个客户连接，会触发调用`onCreateClient()`创建客户场景对象，会调用`_canAddClient()`判断是否添加到服务器客户列表更多...

template<typename _Fx , typename... _ArgType>
void	_postTask (winux::SharedPointer< ClientCtx > clientCtxPtr, _Fx fn, _ArgType &&...arg)
	往线程池投递任务更多...

virtual void	onClientDataNotify (winux::SharedPointer< ClientCtx > clientCtxPtr, size_t readableSize)

Protected 成员函数继承自 http::UrlRouter
virtual void	routing (winux::SharedPointer< http::Request > requestPtr, http::UrlPathPartData const &urlData, http::Response &rsp)
	路由处理更多...

virtual void	onWebMain (winux::SharedPointer< http::Request > requestPtr, http::Response &rsp)

virtual bool	onExtensionHandling (winux::String const &extName, winux::String const &fullPath, winux::SharedPointer< http::Request > requestPtr, http::Response &rsp)

Protected 属性
OpenHandlerFunction	_OpenHandler

MessageHandlerFunction	_MessageHandler

CloseHandlerFunction	_CloseHandler

ErrorHandlerFunction	_ErrorHandler

Protected 属性继承自 http::HttpServer
CreateResponseHandlerFunction	_CreateResponseHandler

Protected 属性继承自 eiennet::Server
ClientDataNotifyHandlerFunction	_ClientDataNotifyHandler

ClientDataArrivedHandlerFunction	_ClientDataArrivedHandler

CreateClientHandlerFunction	_CreateClientHandler

winux::ThreadPool	_pool
	线程池更多...

winux::RecursiveMutex	_mtxServer
	互斥量保护服务器共享数据更多...

ip::tcp::Socket	_servSockA
	服务器监听套接字A 更多...

ip::tcp::Socket	_servSockB
	服务器监听套接字B 更多...

std::map< winux::uint64, winux::SharedPointer< ClientCtx > >	_clients
	客户映射表更多...

winux::uint64	_cumulativeClientId
	客户唯一标识更多...

bool	_stop
	是否停止更多...

bool	_servSockAIsListening
	servSockA是否处于监听中更多...

bool	_servSockBIsListening
	servSockB是否处于监听中更多...

bool	_isAutoReadData
	是否自动读取客户到达的数据。当为true时，客户数据达到时调用ClientDataArrived事件，否则调用ClientDataNotify事件更多...

double	_serverWait
	服务器IO等待时间间隔（秒）更多...

double	_verboseInterval
	Verbose信息刷新间隔（秒）更多...

VerboseOutputType	_verbose
	提示信息输出方式更多...

Protected 属性继承自 http::UrlRouter
http::StaticFileMemoryCache	_staticFileCache
	静态文件缓存更多...

std::vector< std::unordered_map< winux::String, std::unordered_map< winux::String, CrossRouteHandlerFunction > > >	_crossRouter
	过径路由器更多...

std::unordered_map< winux::String, std::unordered_map< winux::String, RouteHandlerFunction > >	_router
	普通路由器更多...

WebMainHandlerFunction	_WebMainHandler

ExtensionHandlingHandlerFunction	_ExtensionHandlingHandler

额外继承的成员函数
Public 属性继承自 http::HttpServer
HttpServerConfig	httpConfig
	HTTP服务器配置对象更多...

详细描述

WebSocket服务器

在文件 ws_websocket.hpp 第 281 行定义.

成员类型定义说明

using ws::WsHttpServer::OpenHandlerFunction = std::function< void ( winux::SharedPointer<WsHttpRequestCtx> requestCtxPtr ) >

在文件 ws_websocket.hpp 第 290 行定义.

using ws::WsHttpServer::MessageHandlerFunction = std::function< void ( winux::SharedPointer<WsHttpRequestCtx> requestCtxPtr, winux::AnsiString const & data, int messageType ) >

在文件 ws_websocket.hpp 第 291 行定义.

using ws::WsHttpServer::CloseHandlerFunction = std::function< void ( winux::SharedPointer<WsHttpRequestCtx> requestCtxPtr, winux::uint16 errCode, winux::AnsiString const & errStr ) >

在文件 ws_websocket.hpp 第 292 行定义.

using ws::WsHttpServer::ErrorHandlerFunction = std::function< void ( winux::SharedPointer<WsHttpRequestCtx> requestCtxPtr, WebSocketErrorCode ec ) >

在文件 ws_websocket.hpp 第 293 行定义.

成员函数说明

virtual bool ws::WsHttpServer::_beginRouting	(	winux::SharedPointer< http::HttpRequestCtx >	requestCtxPtr,
		http::UrlPathPartData const &	urlData,
		http::Response &	rsp
	)

overrideprotectedvirtual

开始路由。返回false表示不路由（在此判断是否升级为WebSocket）

重载 http::HttpServer .

void ws::WsHttpServer::onOpenHandler ( OpenHandlerFunction handler )

inline

在文件 ws_websocket.hpp 第 290 行定义.

virtual void ws::WsHttpServer::onOpen ( winux::SharedPointer< WsHttpRequestCtx > requestCtxPtr )

inlineprotectedvirtual

在文件 ws_websocket.hpp 第 290 行定义.

void ws::WsHttpServer::onMessageHandler ( MessageHandlerFunction handler )

inline

在文件 ws_websocket.hpp 第 291 行定义.

virtual void ws::WsHttpServer::onMessage	(	winux::SharedPointer< WsHttpRequestCtx >	requestCtxPtr,
		winux::AnsiString const &	data,
		int	messageType
	)

inlineprotectedvirtual

在文件 ws_websocket.hpp 第 291 行定义.

void ws::WsHttpServer::onCloseHandler ( CloseHandlerFunction handler )

inline

在文件 ws_websocket.hpp 第 292 行定义.

virtual void ws::WsHttpServer::onClose	(	winux::SharedPointer< WsHttpRequestCtx >	requestCtxPtr,
		winux::uint16	errCode,
		winux::AnsiString const &	errStr
	)

inlineprotectedvirtual

在文件 ws_websocket.hpp 第 292 行定义.

void ws::WsHttpServer::onErrorHandler ( ErrorHandlerFunction handler )

inline

在文件 ws_websocket.hpp 第 293 行定义.

virtual void ws::WsHttpServer::onError	(	winux::SharedPointer< WsHttpRequestCtx >	requestCtxPtr,
		WebSocketErrorCode	ec
	)

inlineprotectedvirtual

在文件 ws_websocket.hpp 第 293 行定义.

类成员变量说明

OpenHandlerFunction ws::WsHttpServer::_OpenHandler

protected

在文件 ws_websocket.hpp 第 290 行定义.

MessageHandlerFunction ws::WsHttpServer::_MessageHandler

protected

在文件 ws_websocket.hpp 第 291 行定义.

CloseHandlerFunction ws::WsHttpServer::_CloseHandler

protected

在文件 ws_websocket.hpp 第 292 行定义.

ErrorHandlerFunction ws::WsHttpServer::_ErrorHandler

protected

在文件 ws_websocket.hpp 第 293 行定义.

该类的文档由以下文件生成:

ws_websocket.hpp
