WsHTTP服务端更多...

#include <http_old.hpp>

类 http::old_v1::ws::WsHttpServer< _ClientCtx > 继承关系图:

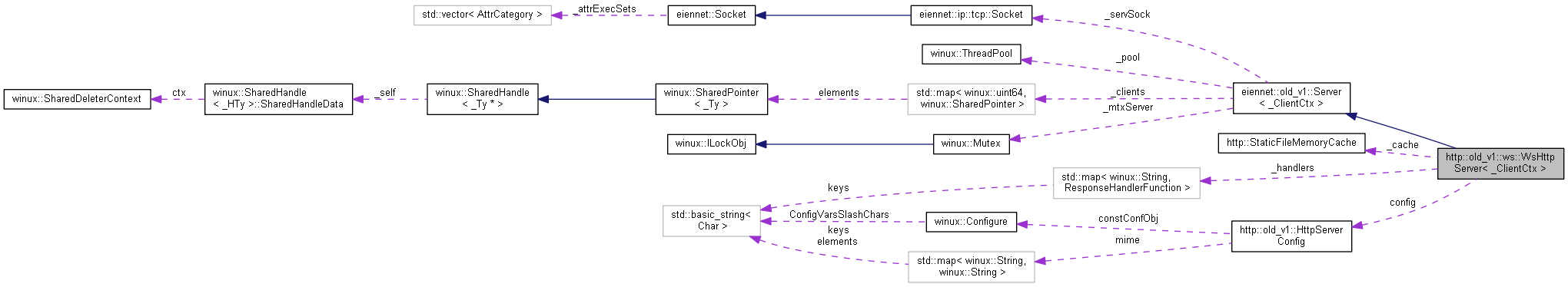

http::old_v1::ws::WsHttpServer< _ClientCtx > 的协作图:

[图例]

Public 类型
using	ClientCtxSharedPointer = typename eiennet::old_v1::Server< _ClientCtx >::ClientCtxSharedPointer

using	OpenHandlerFunction = std::function< void(ClientCtxSharedPointer clientCtxPtr) >

using	MessageHandlerFunction = std::function< void(ClientCtxSharedPointer clientCtxPtr, winux::AnsiString const &data, int messageType) >

using	CloseHandlerFunction = std::function< void(ClientCtxSharedPointer clientCtxPtr, winux::uint16 errCode, winux::AnsiString const &errStr) >

using	ErrorHandlerFunction = std::function< void(ClientCtxSharedPointer clientCtxPtr, WebSocketErrorCode ec) >

using	ResponseHandlerFunction = std::function< void(ClientCtxSharedPointer &clientCtxPtr, http::Header const &reqHdr, http::Url const &url, http::Header &rspHdr, std::ostream &rspOut) >

Public 类型继承自 eiennet::old_v1::Server< _ClientCtx >
using	ClientCtxSharedPointer = winux::SharedPointer< _ClientCtx >

using	StartupHandlerFunction = std::function< void(ClientCtxSharedPointer clientCtxPtr) >

Public 成员函数
	WsHttpServer (HttpServerConfig const &confObj)

	WsHttpServer (winux::String const &serverIp, winux::ushort port, int threadCount=10, int listenBacklog=10, double durationSec=0.1)

void	setHandler (winux::String const &urlPath, ResponseHandlerFunction handler)
	设置动态页面处理更多...

void	onOpenHandler (OpenHandlerFunction handler)
	设置WebSocket打开事件处理更多...

void	onMessageHandler (MessageHandlerFunction handler)
	设置WebSocket消息到达事件处理更多...

void	onCloseHandler (CloseHandlerFunction handler)
	设置WebSocket关闭事件处理更多...

void	onErrorHandler (ErrorHandlerFunction handler)
	设置WebSocket出错事件处理更多...

Public 成员函数继承自 eiennet::old_v1::Server< _ClientCtx >
	Server (ip::EndPoint const &ep, int threadCount=4, int backlog=0)
	构造函数1 更多...

virtual	~Server ()

virtual int	run ()

void	stop (bool b=true)
	是否停止服务运行更多...

size_t	getClientsCount () const

void	onStartupHandler (StartupHandlerFunction handler)

void	removeClient (winux::uint64 clientId)

Protected 成员函数
virtual void	onStartup (ClientCtxSharedPointer clientCtxPtr) override

void	_doRecvRequestHeaderTask (ClientCtxSharedPointer clientCtxPtr)

void	_doRecvRequestBodyTask (ClientCtxSharedPointer clientCtxPtr)

void	_doRequestTask (ClientCtxSharedPointer clientCtxPtr)

void	_httpProcess (ClientCtxSharedPointer &clientCtxPtr, http::Header const &reqHdr, http::Url const &url, http::Header &rspHdr, std::ostream &rspOut)

void	_webProcess (ClientCtxSharedPointer &clientCtxPtr, http::Header const &reqHdr, http::Url const &url, http::Header &rspHdr, std::ostream &rspOut)

void	_doRecvWebSocketFrameTask (ClientCtxSharedPointer clientCtxPtr)

void	_doProcessWebSocketFrameTask (ClientCtxSharedPointer clientCtxPtr, bool fin, winux::uint opcode, winux::Buffer &payloadData)

virtual void	onOpen (ClientCtxSharedPointer clientCtxPtr)

virtual void	onMessage (ClientCtxSharedPointer clientCtxPtr, winux::AnsiString const &data, int messageType)

virtual void	onClose (ClientCtxSharedPointer clientCtxPtr, winux::uint16 errCode, winux::AnsiString const &errStr)

virtual void	onError (ClientCtxSharedPointer clientCtxPtr, WebSocketErrorCode ec)

Protected 成员函数继承自 eiennet::old_v1::Server< _ClientCtx >
ClientCtxSharedPointer &	_addClient (ip::EndPoint const &clientEp, winux::SharedPointer< ip::tcp::Socket > clientSockPtr)

virtual void	onStartup (ClientCtxSharedPointer clientCtxPtr)

Protected 属性
OpenHandlerFunction	_openHandler

MessageHandlerFunction	_messageHandler

CloseHandlerFunction	_closeHandler

ErrorHandlerFunction	_errorHandler

std::map< winux::String, ResponseHandlerFunction >	_handlers

http::StaticFileMemoryCache	_cache

Protected 属性继承自 eiennet::old_v1::Server< _ClientCtx >
winux::uint64	_cumulativeClientId

bool	_stop

winux::ThreadPool	_pool

winux::Mutex	_mtxServer

ip::tcp::Socket	_servSock

std::map< winux::uint64, ClientCtxSharedPointer >	_clients

StartupHandlerFunction	_startupHandler

详细描述
