HTTP服务器应用更多...

#include <webx_HttpApp.hpp>

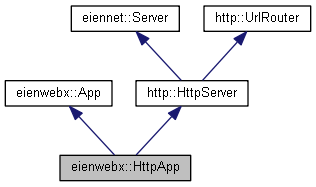

类 eienwebx::HttpApp 继承关系图:

[图例]

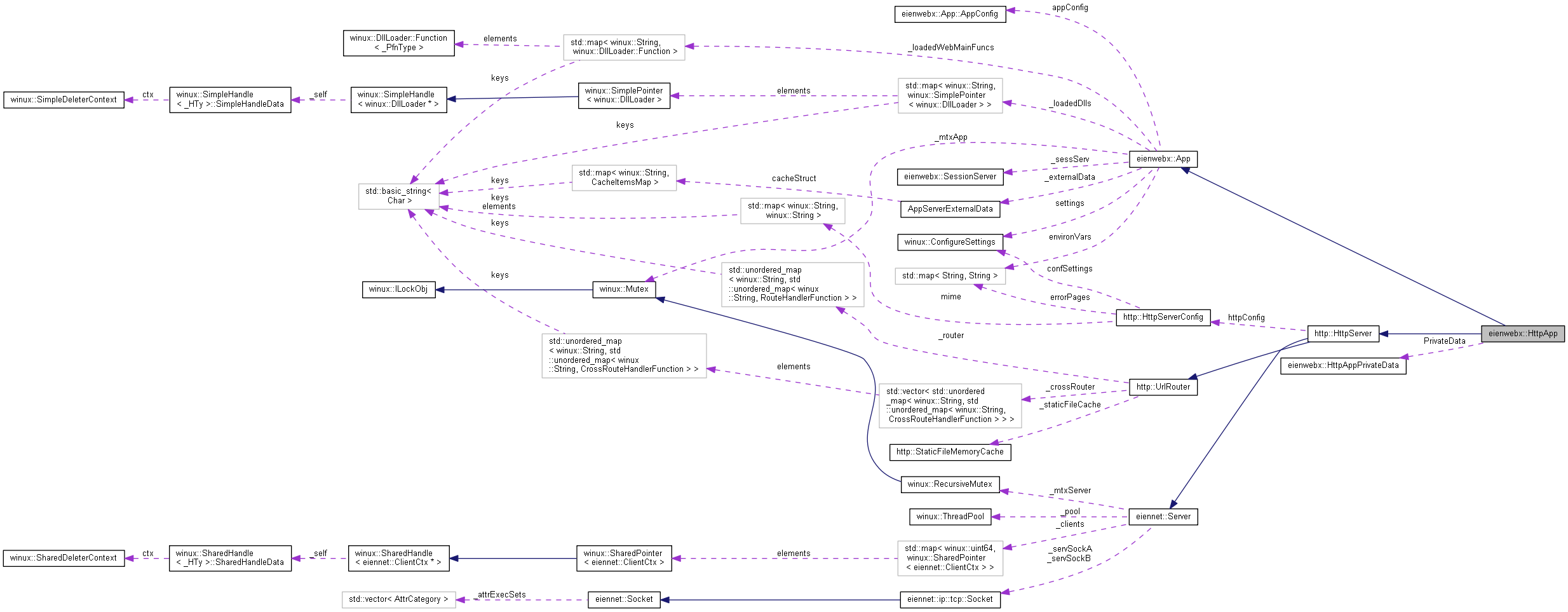

eienwebx::HttpApp 的协作图:

[图例]

Public 类型
using	CrossRouteHandlerFunction = http::CrossRouteHandlerFunctionT< HttpRequestCtx, Response >
	过径路由处理函数类型更多...

using	RouteHandlerFunction = http::RouteHandlerFunctionT< HttpRequestCtx, Response >
	普通路由处理函数类型更多...

Public 类型继承自 eienwebx::App
enum	ErrorCode { Err_Success, Err_DoFileNotFound, Err_WebMainNotFound, Err_InfiniteRecursion }
	执行do文件的错误码更多...

Public 类型继承自 http::HttpServer
using	CrossRouteHandlerFunction = CrossRouteHandlerFunctionT< HttpRequestCtx, Response >
	过径路由处理函数类型更多...

using	RouteHandlerFunction = RouteHandlerFunctionT< HttpRequestCtx, Response >
	普通路由处理函数类型更多...

using	CreateResponseHandlerFunction = std::function< Response *(Request &req, winux::SimplePointer< RspOutputMgr > outputMgr) >
	创建响应处理函数类型更多...

Public 类型继承自 eiennet::Server
using	ClientDataNotifyHandlerFunction = std::function< void(winux::SharedPointer< ClientCtx > clientCtxPtr, size_t readableSize) >
	客户数据通知，当`Server::_isAutoReadData`为false时有效更多...

using	ClientDataArrivedHandlerFunction = std::function< void(winux::SharedPointer< ClientCtx > clientCtxPtr, winux::Buffer &data) >
	客户数据到达，当`Server::_isAutoReadData`为true时有效更多...

using	CreateClientHandlerFunction = std::function< ClientCtx *(winux::uint64 clientId, winux::String const &clientEpStr, winux::SharedPointer< ip::tcp::Socket > clientSockPtr) >
	创建客户连接对象更多...

Public 类型继承自 http::UrlRouter
using	CrossRouteHandlerFunction = CrossRouteHandlerFunctionT< http::Request, http::Response >

using	RouteHandlerFunction = RouteHandlerFunctionT< http::Request, http::Response >

using	WebMainHandlerFunction = std::function< void(winux::SharedPointer< http::Request > requestPtr, http::Response &rsp) >
	WebMain逻辑处理函数类型更多...

using	ExtensionHandlingHandlerFunction = std::function< bool(winux::String const &extName, winux::String const &fullPath, winux::SharedPointer< http::Request > requestPtr, http::Response &rsp) >
	特别扩展名处理函数类型更多...

Public 成员函数
	HttpApp ()
	构造函数0 更多...

	HttpApp (winux::ConfigureSettings const &settings, AppServerExternalData *externalData)
	构造函数1 更多...

	HttpApp (winux::ConfigureSettings const &settings, AppServerExternalData *externalData, eiennet::ip::EndPoint const &ep, int threadCount=4, int backlog=0, double serverWait=0.002, double verboseInterval=0.01, eiennet::VerboseOutputType verbose=eiennet::votConsole, int cacheLifeTime=86400)
	构造函数2 更多...

bool	init (winux::ConfigureSettings const &settings, AppServerExternalData *externalData)
	初始化1 更多...

bool	init (winux::ConfigureSettings const &settings, AppServerExternalData *externalData, eiennet::ip::EndPoint const &ep, int threadCount=4, int backlog=0, double serverWait=0.002, double verboseInterval=0.01, eiennet::VerboseOutputType verbose=eiennet::votConsole, int cacheLifeTime=86400)
	初始化2 更多...

void	crossRoute (winux::String const &method, winux::String const &path, CrossRouteHandlerFunction handler)
	注册过径路由处理器更多...

void	route (winux::String const &method, winux::String const &path, RouteHandlerFunction handler)
	注册普通路由处理器更多...

virtual int	run (void *runParam) override
	运行更多...

Public 成员函数继承自 eienwebx::App
	App ()
	构造函数0 更多...

	App (winux::ConfigureSettings const &settings, AppServerExternalData *externalData)
	构造函数2 更多...

virtual	~App ()
	析构函数更多...

bool	init (winux::ConfigureSettings const &settings, AppServerExternalData *externalData)
	初始化App对象更多...

int	loadedDoFiles (winux::Mixed *arrDoFiles) const
	产品模式下，显示所有已经加载的do文件更多...

bool	unloadDoFile (winux::String const &doFullPath)
	卸载指定的do文件更多...

winux::DllLoader &	loadModule (winux::String const &modFullPath)
	加载一个模块，若已经加载则返回其引用. 更多...

int	loadedModules (winux::Mixed *arrModules) const
	显示已经加载的模块更多...

bool	unloadModule (winux::String const &modFullPath)
	卸载一个模块更多...

App &	loadEnv ()
	加载可执行文件的环境变量更多...

winux::String	dumpEnv () const
	倾泻出应用全部环境变量更多...

virtual ErrorCode	execWebMain (winux::String const &doFullPath, Response rsp, void runParam, int *retCode)
	执行生成页面内容的过程，载入绝对路径doFullPath的do文件，并调用其WebMain()。更多...

ErrorCode	importDoFile (winux::String const &doFullPath, Response rsp, void runParam, int retCode, winux::String errDetail)
	import一个do文件，并把它的输出作为指定rsp的输出更多...

void *	getParam () const
	取得可能在do中由`setParam()`传递的参数更多...

template<typename _Ty >
_Ty	getParam () const
	取得可能在do中由`setParam()`传递的参数更多...

void	setParam (void *param)
	设置可能在do中传递的参数更多...

void *	getRunParam () const
	取得从`run()`传进的参数更多...

template<typename _Ty >
_Ty	getRunParam () const
	取得从`run()`传进的参数更多...

AppServerExternalData *	getExternalData ()
	取得外部定义的相关数据更多...

void	setExternalData (AppServerExternalData *data)
	设置外部定义的相关数据更多...

SessionServer *	getSessServ ()
	取得`SessionServer *` 更多...

void	setSessServ (SessionServer *sessServ)
	设置`SessionServer *` 更多...

Public 成员函数继承自 http::HttpServer
	HttpServer ()
	构造函数0 更多...

	HttpServer (winux::ConfigureSettings const &settings)
	构造函数1 更多...

	HttpServer (winux::ConfigureSettings const &settings, eiennet::ip::EndPoint const &ep, int threadCount=4, int backlog=0, double serverWait=0.002, double verboseInterval=0.01, eiennet::VerboseOutputType verbose=eiennet::votConsole, int cacheLifeTime=86400)
	构造函数2 更多...

bool	init (winux::ConfigureSettings const &settings)
	初始化1 更多...

bool	init (winux::ConfigureSettings const &settings, eiennet::ip::EndPoint const &ep, int threadCount=4, int backlog=0, double serverWait=0.002, double verboseInterval=0.01, eiennet::VerboseOutputType verbose=eiennet::votConsole, int cacheLifeTime=86400)
	初始化2 更多...

void	crossRoute (winux::String const &method, winux::String const &path, CrossRouteHandlerFunction handler)
	注册过径路由处理器更多...

void	route (winux::String const &method, winux::String const &path, RouteHandlerFunction handler)
	注册普通路由处理器更多...

void	onCreateResponseHandler (CreateResponseHandlerFunction handler)

Public 成员函数继承自 eiennet::Server
	Server ()
	构造函数0，不会启动服务，必须手动调用`startup()` 更多...

	Server (bool autoReadData, ip::EndPoint const &ep, int threadCount=4, int backlog=0, double serverWait=0.002, double verboseInterval=0.01, VerboseOutputType verbose=votConsole)
	构造函数1，会启动服务更多...

virtual	~Server ()

bool	startup (bool autoReadData, ip::EndPoint const &ep, int threadCount=4, int backlog=0, double serverWait=0.002, double verboseInterval=0.01, VerboseOutputType verbose=votConsole)
	启动服务器更多...

void	stop (bool b=true)
	是否停止服务运行更多...

size_t	getClientsCount () const
	获取客户连接数更多...

void	removeClient (winux::uint64 clientId)
	移除客户连接更多...

void	onClientDataNotifyHandler (ClientDataNotifyHandlerFunction handler)

void	onClientDataArrivedHandler (ClientDataArrivedHandlerFunction handler)

void	onCreateClientHandler (CreateClientHandlerFunction handler)

Public 成员函数继承自 http::UrlRouter
	UrlRouter (http::HttpServerConfig *httpConfig=nullptr)
	构造函数更多...

virtual	~UrlRouter ()
	析构函数更多...

bool	init (http::HttpServerConfig *httpConfig)
	初始化更多...

void	crossRoute (winux::String const &method, winux::String const &path, CrossRouteHandlerFunction handler)
	注册过径路由处理器更多...

void	route (winux::String const &method, winux::String const &path, RouteHandlerFunction handler)
	注册普通路由处理器更多...

void	onWebMainHandler (WebMainHandlerFunction handler)

void	onExtensionHandlingHandler (ExtensionHandlingHandlerFunction handler)

静态 Public 成员函数
static void	InitPrivateData ()
	初始化HttpApp私有数据更多...

静态 Public 属性
static HttpAppPrivateData	PrivateData

Protected 成员函数
virtual eiennet::ClientCtx *	onCreateClient (winux::uint64 clientId, winux::String const &clientEpStr, winux::SharedPointer< eiennet::ip::tcp::Socket > clientSockPtr) override

virtual http::Response *	onCreateResponse (http::Request &req, winux::SimplePointer< http::RspOutputMgr > outputMgr) override

virtual bool	_beginHttpRequest (winux::SharedPointer< http::HttpRequestCtx > requestCtxPtr, http::UrlPathPartData *urlData) override
	开始HTTP请求处理，初始化一些数据更多...

virtual bool	onExtensionHandling (winux::String const &extName, winux::String const &fullPath, winux::SharedPointer< http::Request > requestPtr, http::Response &rsp) override

Protected 成员函数继承自 eienwebx::App
void	_clearModules ()
	清空已加载的模块和WebMain函数更多...

ErrorCode	_importDoFileDevelopment (winux::String const &doFullPath, Response rsp, void runParam, int retCode, winux::String errDetail)
	开发模式下，导入do文件并运行更多...

ErrorCode	_importDoFileProduction (winux::String const &doFullPath, Response rsp, void runParam, int retCode, winux::String errDetail)
	产品模式下，导入do文件并运行更多...

Protected 成员函数继承自 http::HttpServer
virtual void	onClientDataArrived (winux::SharedPointer< eiennet::ClientCtx > clientCtxPtr, winux::Buffer &data) override

void	_onHttpRequestInternal (winux::SharedPointer< HttpRequestCtx > requestCtxPtr)
	处理一次HTTP请求更多...

virtual void	_endHttpRequest (winux::SharedPointer< http::HttpRequestCtx > requestCtxPtr)
	HTTP请求处理完，进行一些收尾更多...

virtual bool	_beginRouting (winux::SharedPointer< http::HttpRequestCtx > requestCtxPtr, http::UrlPathPartData const &urlData, http::Response &rsp)
	开始路由。返回false表示不路由更多...

virtual void	_endRouting (winux::SharedPointer< http::HttpRequestCtx > requestCtxPtr, http::UrlPathPartData const &urlData, http::Response &rsp)
	结束路由更多...

virtual void	_whatNextTask (winux::SharedPointer< HttpRequestCtx > requestCtxPtr)
	下一次要做的任务更多...

virtual void	_doTask (winux::SharedPointer< http::HttpRequestCtx > requestCtxPtr)
	执行客户任务更多...

void	_doRecvRequestHeaderTask (winux::SharedPointer< HttpRequestCtx > requestCtxPtr)
	接收请求头任务更多...

void	_doRecvRequestBodyTask (winux::SharedPointer< HttpRequestCtx > requestCtxPtr)
	接收请求体任务更多...

Protected 成员函数继承自 eiennet::Server
virtual bool	_canAddClient (ClientCtx *clientCtx)
	是否添加一个客户连接。返回true添加，返回false不添加更多...

bool	_addClient (ip::EndPoint const &clientEp, winux::SharedPointer< ip::tcp::Socket > clientSockPtr, winux::SharedPointer< ClientCtx > **ppClientCtxPtr)
	添加一个客户连接，会触发调用`onCreateClient()`创建客户场景对象，会调用`_canAddClient()`判断是否添加到服务器客户列表更多...

template<typename _Fx , typename... _ArgType>
void	_postTask (winux::SharedPointer< ClientCtx > clientCtxPtr, _Fx fn, _ArgType &&...arg)
	往线程池投递任务更多...

virtual void	onClientDataNotify (winux::SharedPointer< ClientCtx > clientCtxPtr, size_t readableSize)

Protected 成员函数继承自 http::UrlRouter
virtual void	routing (winux::SharedPointer< http::Request > requestPtr, http::UrlPathPartData const &urlData, http::Response &rsp)
	路由处理更多...

virtual void	onWebMain (winux::SharedPointer< http::Request > requestPtr, http::Response &rsp)

友元
class	HttpRequestCtx

额外继承的成员函数
Public 属性继承自 eienwebx::App
winux::ConfigureSettings	settings
	配置设置对象更多...

struct eienwebx::App::AppConfig	appConfig

winux::StringStringMap	environVars
	可执行文件的environ环境变量更多...

Public 属性继承自 http::HttpServer
HttpServerConfig	httpConfig
	HTTP服务器配置对象更多...

Protected 类型继承自 eienwebx::App
typedef int(*	PFN_WebMain) (Response , void )
	do文件中`WebMain()`的类型更多...

typedef winux::DllLoader::Function< PFN_WebMain >	WebMainFunc
	`WebMain()`函数对象类型更多...

Protected 属性继承自 eienwebx::App
SessionServer *	_sessServ
	会话服务器更多...

void *	_runParam
	来自`run()`传递进来的参数更多...

void *	_param
	来自`setParam()`传递进来的参数更多...

AppServerExternalData *	_externalData
	创建`App`对象的程序传递进来的结构。由外部定义，定义是自定的，所在于全局名称空间::，可通过头文件定义结构再通过包含头文件去使用更多...

std::map< winux::String, winux::SimplePointer< winux::DllLoader > >	_loadedDlls
	已经加载的dll 更多...

std::map< winux::String, WebMainFunc >	_loadedWebMainFuncs
	已经取得的`WebMain()`指针更多...

winux::Mutex	_mtxApp
	互斥量，保护`App`共用成员数据更多...

bool	_isSetDoDirAsWorkDir
	是否设置Do文件目录作为工作目录，多线程环境下应该设为false 更多...

Protected 属性继承自 http::HttpServer
CreateResponseHandlerFunction	_CreateResponseHandler

Protected 属性继承自 eiennet::Server
ClientDataNotifyHandlerFunction	_ClientDataNotifyHandler

ClientDataArrivedHandlerFunction	_ClientDataArrivedHandler

CreateClientHandlerFunction	_CreateClientHandler

winux::ThreadPool	_pool
	线程池更多...

winux::RecursiveMutex	_mtxServer
	互斥量保护服务器共享数据更多...

ip::tcp::Socket	_servSockA
	服务器监听套接字A 更多...

ip::tcp::Socket	_servSockB
	服务器监听套接字B 更多...

std::map< winux::uint64, winux::SharedPointer< ClientCtx > >	_clients
	客户映射表更多...

winux::uint64	_cumulativeClientId
	客户唯一标识更多...

bool	_stop
	是否停止更多...

bool	_servSockAIsListening
	servSockA是否处于监听中更多...

bool	_servSockBIsListening
	servSockB是否处于监听中更多...

bool	_isAutoReadData
	是否自动读取客户到达的数据。当为true时，客户数据达到时调用ClientDataArrived事件，否则调用ClientDataNotify事件更多...

double	_serverWait
	服务器IO等待时间间隔（秒）更多...

double	_verboseInterval
	Verbose信息刷新间隔（秒）更多...

VerboseOutputType	_verbose
	提示信息输出方式更多...

Protected 属性继承自 http::UrlRouter
http::StaticFileMemoryCache	_staticFileCache
	静态文件缓存更多...

std::vector< std::unordered_map< winux::String, std::unordered_map< winux::String, CrossRouteHandlerFunction > > >	_crossRouter
	过径路由器更多...

std::unordered_map< winux::String, std::unordered_map< winux::String, RouteHandlerFunction > >	_router
	普通路由器更多...

WebMainHandlerFunction	_WebMainHandler

ExtensionHandlingHandlerFunction	_ExtensionHandlingHandler

详细描述

HTTP服务器应用

App和http::HttpServer合并

在文件 webx_HttpApp.hpp 第 18 行定义.

成员类型定义说明

using eienwebx::HttpApp::CrossRouteHandlerFunction = http::CrossRouteHandlerFunctionT<HttpRequestCtx, Response>

过径路由处理函数类型

参数

requestCtxPtr	请求场景对象
rsp	响应对象
urlPathPartArr	URL路径部分数组
i	当前URL路径部分的索引

返回: bool 返回false终止过径路由继续，返回true则继续检测其他路由响应

在文件 webx_HttpApp.hpp 第 33 行定义.

using eienwebx::HttpApp::RouteHandlerFunction = http::RouteHandlerFunctionT<HttpRequestCtx, Response>

普通路由处理函数类型

参数

requestCtxPtr	请求场景对象
rsp	响应对象

在文件 webx_HttpApp.hpp 第 39 行定义.

构造及析构函数说明

eienwebx::HttpApp::HttpApp ( )

构造函数0

eienwebx::HttpApp::HttpApp	(	winux::ConfigureSettings const &	settings,
		AppServerExternalData *	externalData
	)

构造函数1

参数

settings	配置设置
externalData	外部定义的数据

eienwebx::HttpApp::HttpApp	(	winux::ConfigureSettings const &	settings,
		AppServerExternalData *	externalData,
		eiennet::ip::EndPoint const &	ep,
		int	threadCount = `4`,
		int	backlog = `0`,
		double	serverWait = `0.002`,
		double	verboseInterval = `0.01`,
		eiennet::VerboseOutputType	verbose = `eiennet::votConsole`,
		int	cacheLifeTime = `86400`
	)

构造函数2

参数

settings	配置设置
externalData	外部定义的数据
ep	服务监听的EndPoint
threadCount	线程池线程数量
backlog	listen(backlog)
serverWait	服务器IO等待时间
verboseInterval	verbose信息刷新间隔
verbose	是否显示提示信息
cacheLifeTime	静态文件缓存时间

成员函数说明

static void eienwebx::HttpApp::InitPrivateData ( )

static

初始化HttpApp私有数据

bool eienwebx::HttpApp::init	(	winux::ConfigureSettings const &	settings,
		AppServerExternalData *	externalData
	)

初始化1

参数

settings	配置设置
externalData	外部定义的数据

返回: bool

返回值

true	初始化成功
false	初始化失败

bool eienwebx::HttpApp::init	(	winux::ConfigureSettings const &	settings,
		AppServerExternalData *	externalData,
		eiennet::ip::EndPoint const &	ep,
		int	threadCount = `4`,
		int	backlog = `0`,
		double	serverWait = `0.002`,
		double	verboseInterval = `0.01`,
		eiennet::VerboseOutputType	verbose = `eiennet::votConsole`,
		int	cacheLifeTime = `86400`
	)

初始化2

参数

settings	配置设置
externalData	外部定义的数据
ep	服务监听的EndPoint
threadCount	线程池线程数量
backlog	listen(backlog)
serverWait	服务器IO等待时间
verboseInterval	verbose信息刷新间隔
verbose	是否显示提示信息
cacheLifeTime	静态文件缓存时间

返回: bool

返回值

true	初始化成功
false	初始化失败

void eienwebx::HttpApp::crossRoute	(	winux::String const &	method,
		winux::String const &	path,
		CrossRouteHandlerFunction	handler
	)

注册过径路由处理器

参数

method	method为半角逗号','分隔的HTTP方法名字符串，可以是"*"表示通配所有HTTP方法
path	path需以'/'开头
handler	处理器函数

void eienwebx::HttpApp::route	(	winux::String const &	method,
		winux::String const &	path,
		RouteHandlerFunction	handler
	)

注册普通路由处理器

参数

method	method为半角逗号','分隔的HTTP方法名字符串，可以是"*"表示通配所有HTTP方法
path	path需以'/'开头
handler	处理器函数

virtual int eienwebx::HttpApp::run ( void * runParam )

overridevirtual

运行

参数

runParam 自定义参数数据

重载 http::HttpServer .

virtual eiennet::ClientCtx* eienwebx::HttpApp::onCreateClient	(	winux::uint64	clientId,
		winux::String const &	clientEpStr,
		winux::SharedPointer< eiennet::ip::tcp::Socket >	clientSockPtr
	)

overrideprotectedvirtual

重载 http::HttpServer .

virtual http::Response* eienwebx::HttpApp::onCreateResponse	(	http::Request &	req,
		winux::SimplePointer< http::RspOutputMgr >	outputMgr
	)

overrideprotectedvirtual

重载 http::HttpServer .

virtual bool eienwebx::HttpApp::_beginHttpRequest	(	winux::SharedPointer< http::HttpRequestCtx >	requestCtxPtr,
		http::UrlPathPartData *	urlData
	)

overrideprotectedvirtual

开始HTTP请求处理，初始化一些数据

重载 http::HttpServer .

virtual bool eienwebx::HttpApp::onExtensionHandling	(	winux::String const &	extName,
		winux::String const &	fullPath,
		winux::SharedPointer< http::Request >	requestPtr,
		http::Response &	rsp
	)

overrideprotectedvirtual

重载 http::UrlRouter .

友元及相关函数文档

friend class HttpRequestCtx

friend

在文件 webx_HttpApp.hpp 第 133 行定义.

类成员变量说明

HttpAppPrivateData eienwebx::HttpApp::PrivateData

static

在文件 webx_HttpApp.hpp 第 21 行定义.

该类的文档由以下文件生成:

webx_HttpApp.hpp

Public 类型

Public 成员函数

静态 Public 成员函数

静态 Public 属性

Protected 成员函数

友元

额外继承的成员函数

详细描述

成员类型定义说明

构造及析构函数说明

成员函数说明

友元及相关函数文档

类成员变量说明
